ANRITSU | Mobile Wireless Communications Measuring Instruments

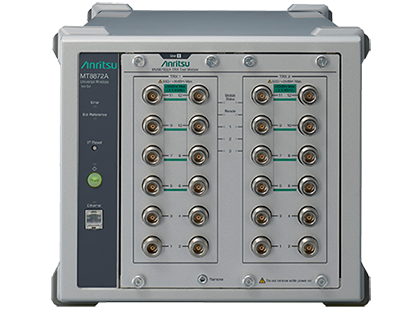

Universal Wireless Test Set MT8872A

Now includes NABL Calibration Certificate.

The MT8872A Universal Wireless Test Set supports 5G NR Sub-6 GHz, LTE, WLAN, and Bluetooth, enabling high-speed testing for mass-production lines of smartphones, automotive, IoT devices, and communication modules..

  • Detail
  • Special Features
  • Specification

The MT8872A Universal Wireless Test Set is designed for high-speed, high-volume testing of modern wireless communication devices. It supports up to two test units in a single chassis, each capable of independently controlling up to 12 antennas. This makes it ideal for testing devices with multiple antennas, which is increasingly common in modern wireless communication systems. The test units offer a bandwidth of 160 MHz and 200 MHz for the MU887000A/MU887001A and MU887002A models, respectively.

The MT8872A supports a wide range of wireless standards, including 5G NR Sub-6 GHz, LTE, WLAN, and Bluetooth, making it versatile for testing devices in the latest communication technologies. The built-in audio analyzer and audio generator functions help increase measurement efficiency by eliminating the need for separate equipment.

  • Dual Test Units: Supports up to two test modules in one chassis, allowing simultaneous testing of up to two devices.

  • Test Units: Each unit supports 12 antennas, simplifying test setup for devices with multiple antennas.

  • Bandwidth: 160 MHz bandwidth for MU887000A/MU887001A, and 200 MHz for MU887002A, supporting 5G NR Sub-6 GHz and WLAN 802.11ax tests.

  • Simultaneous Testing: Enables parallel measurement of up to two devices for faster throughput.

  • Built-in Audio Analyzer/Generator: Increases measurement efficiency for analog and digital mono and stereo audio testing.

  • Multiple Wireless Standards: Supports 5G NR, LTE, WLAN, Bluetooth, V2X, NB-IoT, and Cat-M among others.

  • Frequency Range: 5G NR Sub-6 GHz, LTE, WLAN, Bluetooth, V2X, NB-IoT, Cat-M, and more

  • Bandwidth: 160 MHz for MU887000A/MU887001A, 200 MHz for MU887002A

  • Simultaneous Measurement: Supports up to 2 devices with direct connection of 12 antennas

  • Supported Standards: 5G NR, LTE, WLAN, Bluetooth, V2X, NB-IoT, Cat-M, WCDMA, TD-SCDMA, GSM/EDGE, CDMA2000, ZigBee, Z-Wave, GPS/Galileo/GLONASS, ISDB-T, and more

  • Built-in Audio Test: Audio Analyzer and Audio Generator for analog and digital testing

  • Test Capabilities: TX Power, Modulation Accuracy, RX Sensitivity, and more

  • Size: Compact for high-volume production environments
